| Model |
CS-H7c-R100-8G44WF |
| Camera |

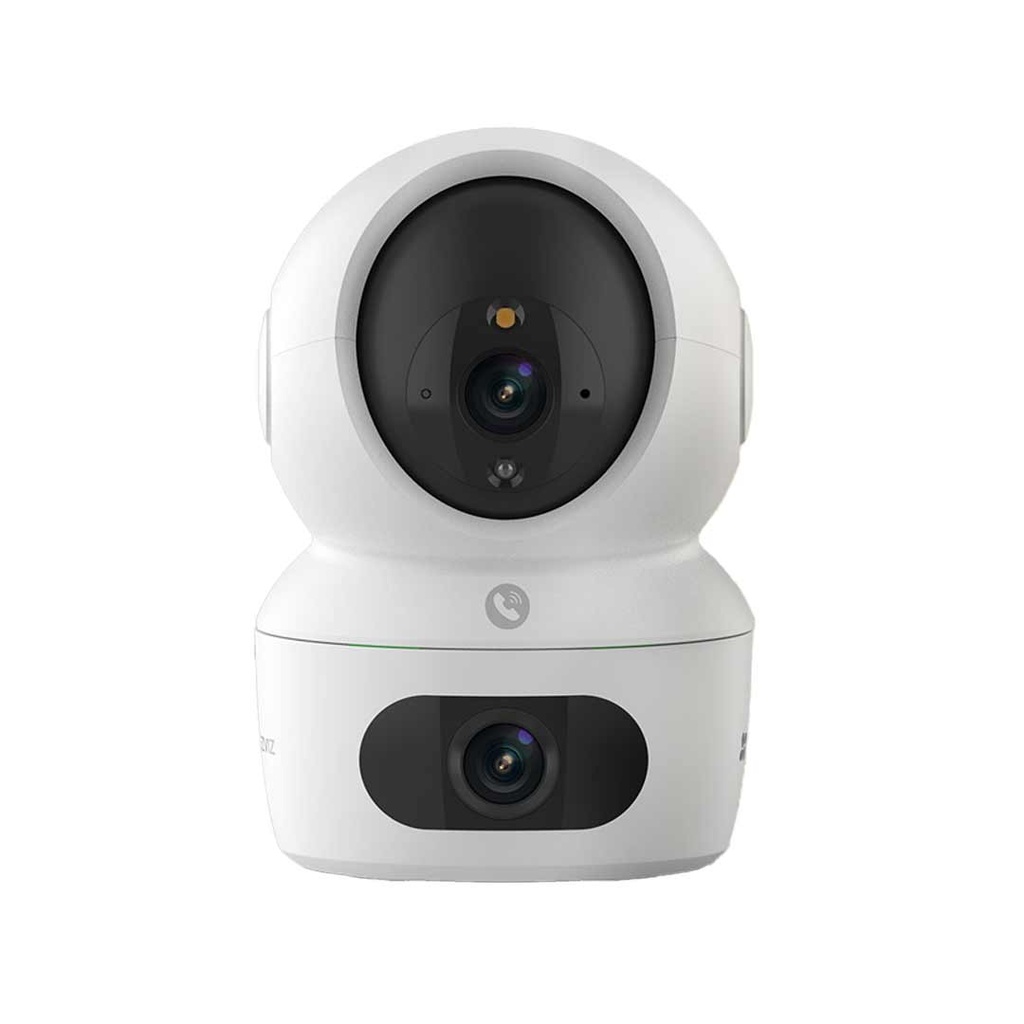

EZVIZ H7c Dual 2K+ (CS-H7c-R100-8G44WF) |
| Resolution |
Dual 2K+ (2560 × 1440) |
| Image Sensor |
1/3″ Progressive Scan CMOS |
| Shutter Speed |
Self-adaptive shutter |
| Fixed Lens |
2.8mm @ F1.6, view angle: 108° (Diagonal), 92° (Horizontal), 50° (Vertical) |
| PT Lens |
6mm @ F1.6, view angle: 60° (Diagonal), 51° (Horizontal), 28° (Vertical) |
| Lens Mount |
M12 |
| Day & Night |
IR-cut filter with auto-switching |
| DNR |
3D DNR |
| WDR |
Digital WDR |
| Compression |
H.264/H.265 |
| Video Bit Rate |
Adaptive bit rate |
| Network |
|
| Smart Alarm |
Motion Detection, Human Shape Detection, Loud Noise Detection, Patrol Mode Detection |
| Wi-Fi Pairing |
AP pairing |
| Protocol |
EZVIZ cloud proprietary protocol |
| Interface Protocol |
EZVIZ cloud proprietary protocol |
| Max. Resolution |
2560 × 1440 |
| Frame Rate |
Max: 30fps; Self-Adaptive during network transmission |
| Interface |
|
| Storage |
Micro SD card slot (Max. 512G) |
| Power |
Type-C |
| Wired Network |
RJ45 X 1 (10M/100M self-adaptive Ethernet port) |
| Wi-Fi |
|
| Standard |
IEEE802.11a, IEEE802.11b, 802.11g, 802.11n, 802.11ac, 802.11ax |
| Frequency Range |
2.4GHz: 2.4 GHz ~ 2.4835 GHz |
| Channel Bandwidth |
2.4GHz Supports 20MHz, 5GHz Supports 80MHz |
| Security |
WPA-PSK, WPA2-PSK, WPA3-Personal |
| Transmission Rate |
See detailed specifications |
| Output Power (EIRP) |
20 dBm |
| Antenna Gain |
2.56dBi @ 2.48GHz, 3.18dBi @ 5.22GHz |
| General |
|
| Operating Conditions |
-10°C to 45°C (-14°F to 113°F), Humidity 95% or less (non-condensing) |
| Power Consumption |
8W max |
| Power Supply |
DC 5V/2A |
| IR Range |
Max. 10 meters (32.81ft) |
| Dimensions |
88 × 88 × 131.5 mm (3.46 × 3.47 × 4.69 in) |
| Net Weight |
270 g (9.52 oz) |
| Bare Weight |
499 g (17.60 oz) |
| In the Box |
Camera (x1), Power Adapter (x1), Power Cable (x1), Drill Template (x1), Mounting Plate (x1), Screw Kit (x1), Regulatory Information (x1), Quick Start Guide (x1) |
| Certifications |
CE, UKCA, WEEE, RoHS, REACH, UL |
